1213S

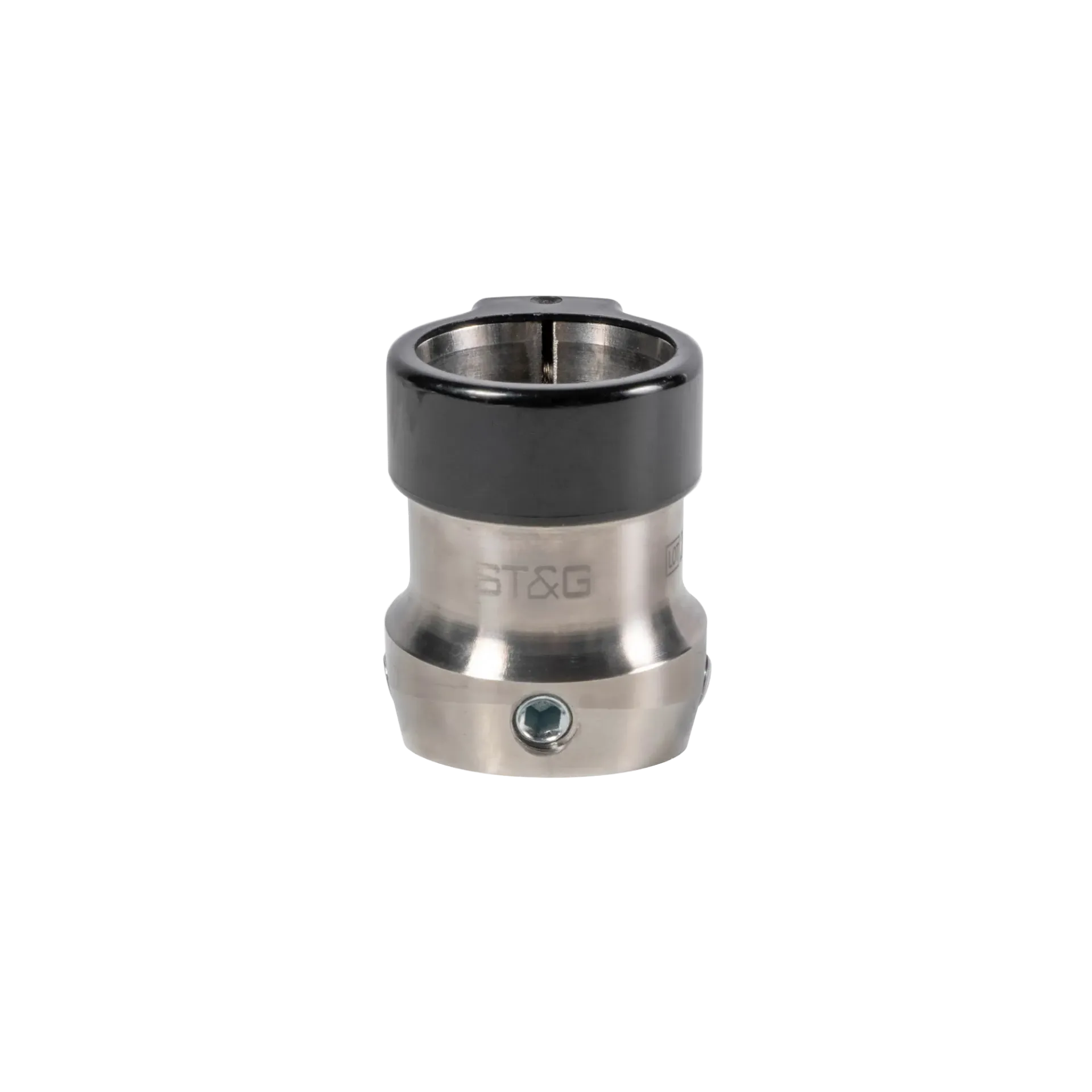

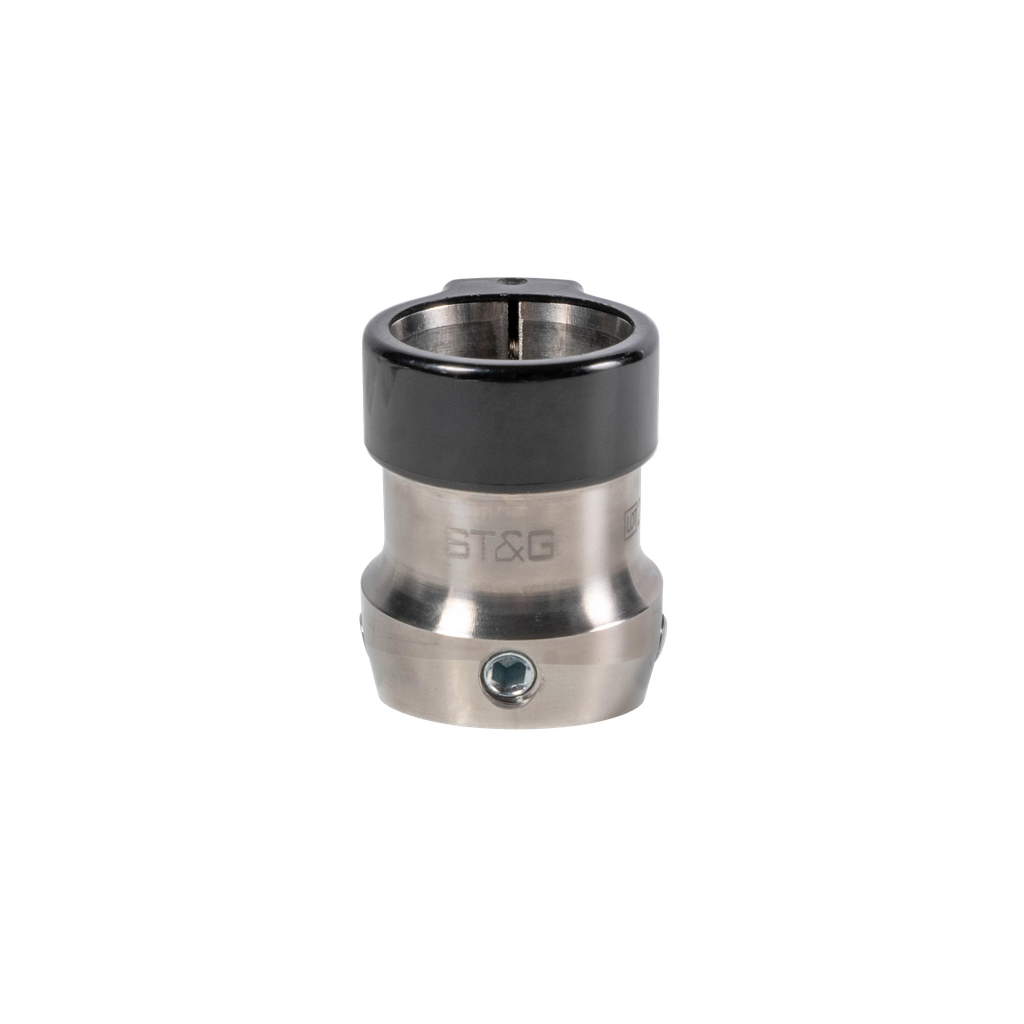

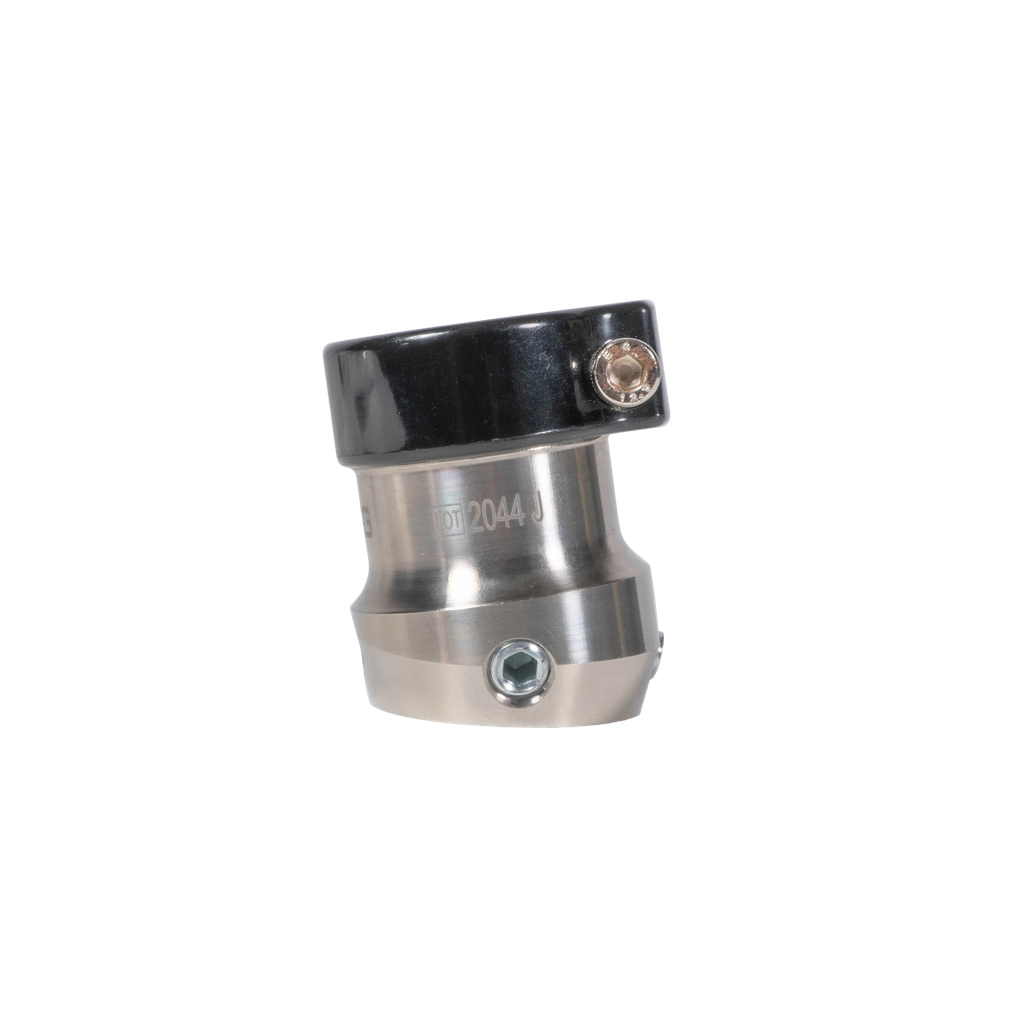

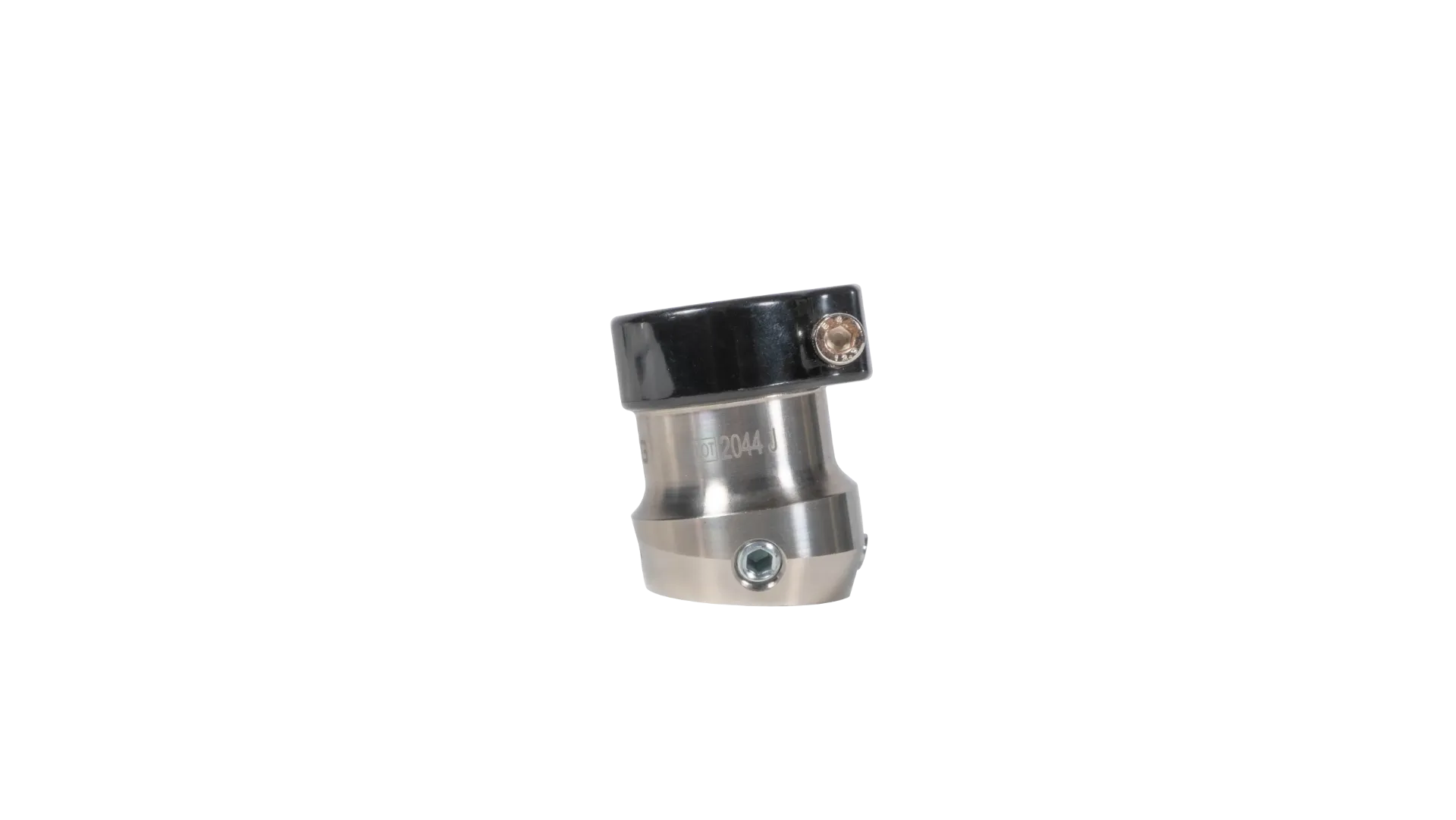

10 Degree Angled Tube Clamp, 30mm, SS

$ 96.03 $ 96.03
The 10º stainless steel 30mm angled adapter is used often with
hip disarticulation system. The 10º angle tilt helps at times
with alignment associated with hip disarticulation system
and as well as transfemoral and transtibial alignment
situation.
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Stainless Steel
Activity Level: Moderate

P/NMaterialBuild HeightProduct WeightWeight Limit
1213T
Stainless Steel
17 mm86 g100 kg / 220 lb

P/NDescription
1211T-B
30 mm Pylon Titanium Receiver, Black
1211T
30 mm Pylon Titanium Receiver
1211S
30 mm Pylon Stainless Steel Receiver
1211A
30 mm Pylon Aluminum Receiver, Black
1211A-OP
30 mm Pylon Aluminum Assembly One Piece

FastenerTorqueWrench
M5 Cap Screw7 Nm4 mm wrench
M8 Set Screw (Alignment Screw)15 Nm4 mm wrench

Instructions for Use (IFU)

1213 IFU REV. A (3-26-2026).pdf
