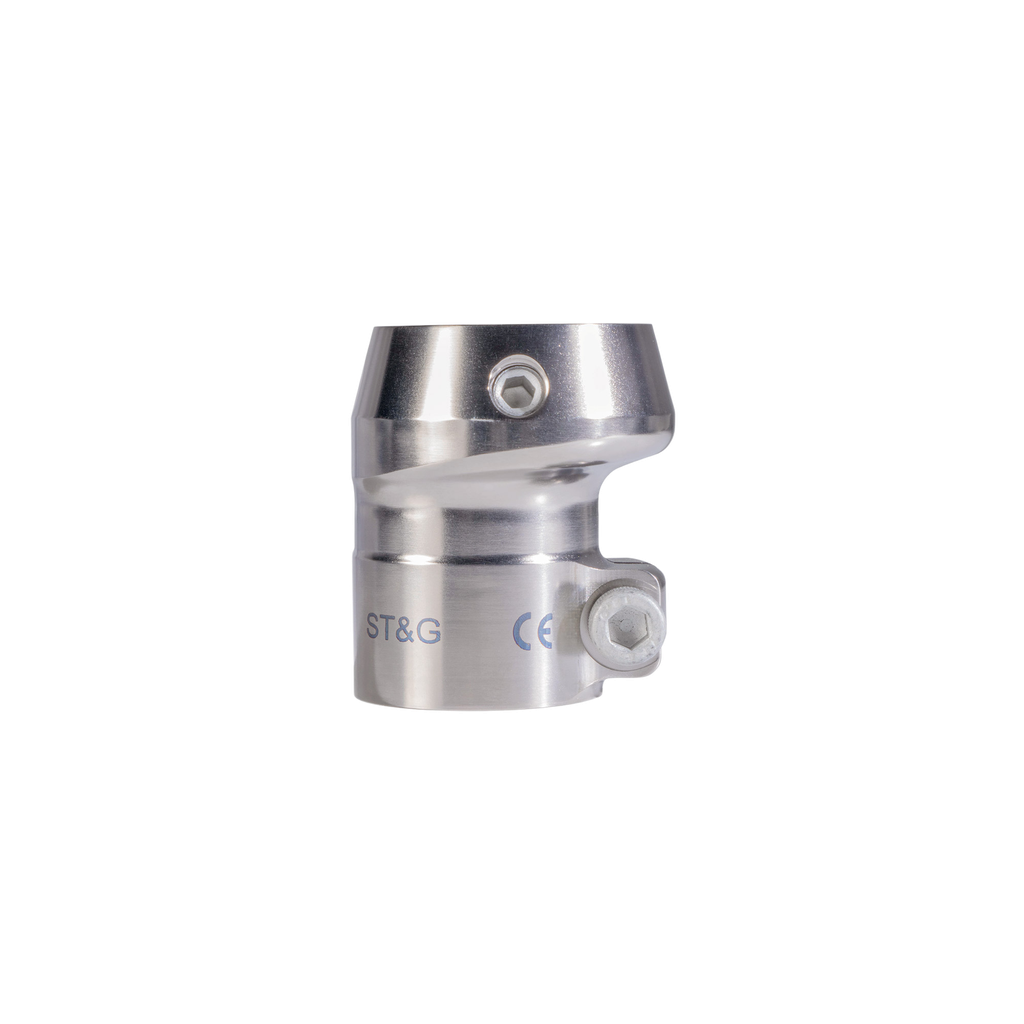

Offset Tube Clamp, 30mm, Ti
1222T

Offset Tube Clamp, 30mm, Ti

$ 124.34 $ 124.34
The 30mm 1222 tube clamp offers 5mm of offset when
extra alignment is needed. It is also ideal when using a
pin suspension lock, where prosthetic and pin alignment
can be easily adjusted using the offset clamp. This versatile
clamp design also provides an offset position that can be
rotated 360 degrees.

Warranty: 2 years


All ST&G Titanium components are waterproof. (If exposed to salt water, exercise proper care post exposure by thoroughly washing and drying the titanium product)


  • Material
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Titanium

P/NMaterialProduct WeightWeight Limit
1222TTitanium98 g170 kg / 375 lb

FastenerTorqueWrench
1222T M6 Cap Screw5-7 Nm5 mm wrench
1222A M8 Set Screw (Alignment Screw)7-10 Nm4 mm wrench
1222A M5 Cap Screw3-4 Nm4 mm wrench
