1238A

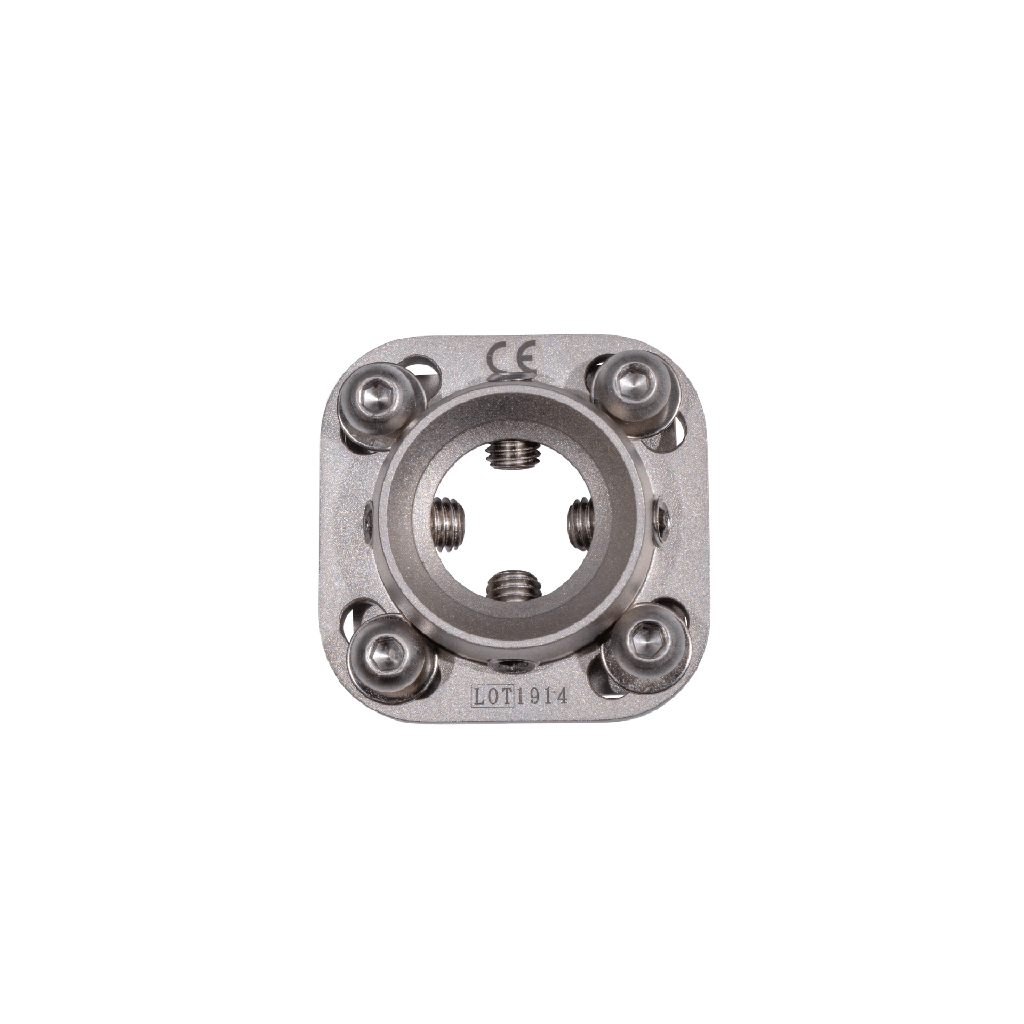

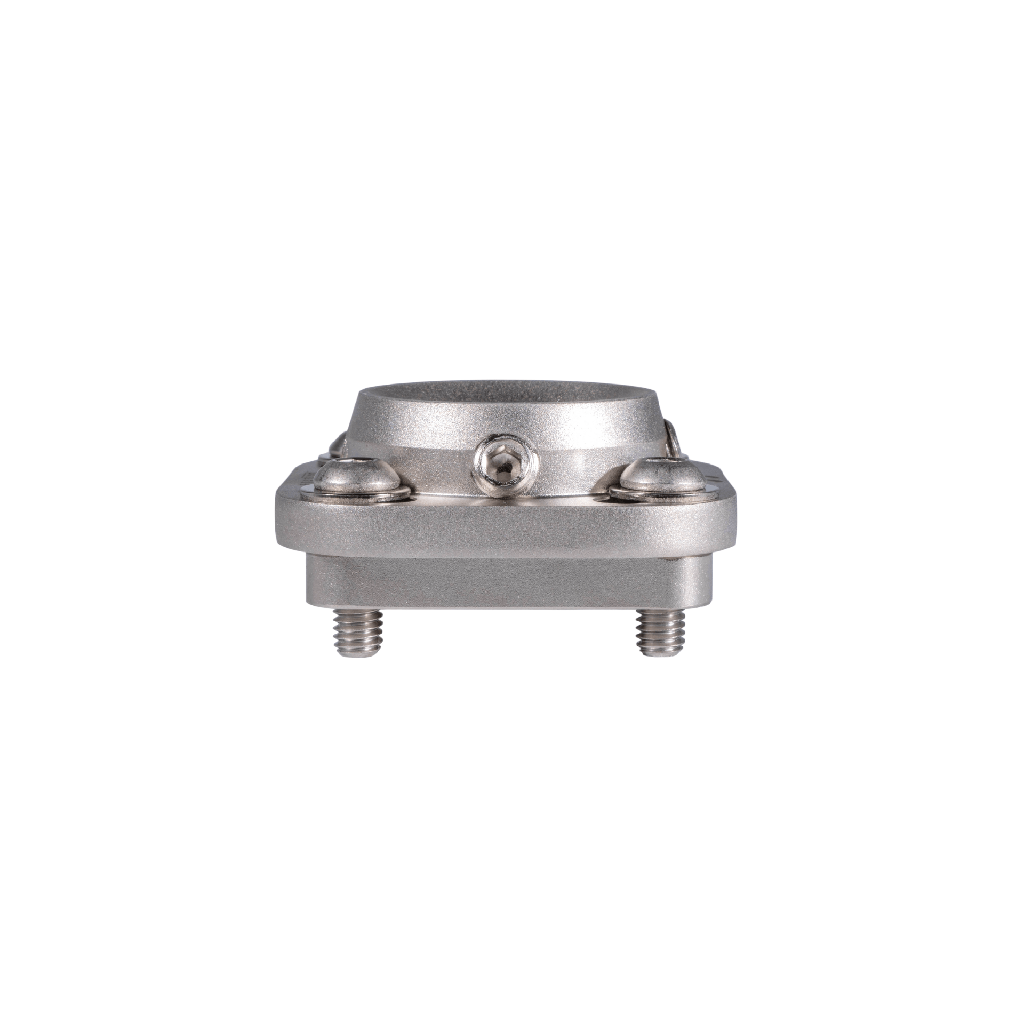

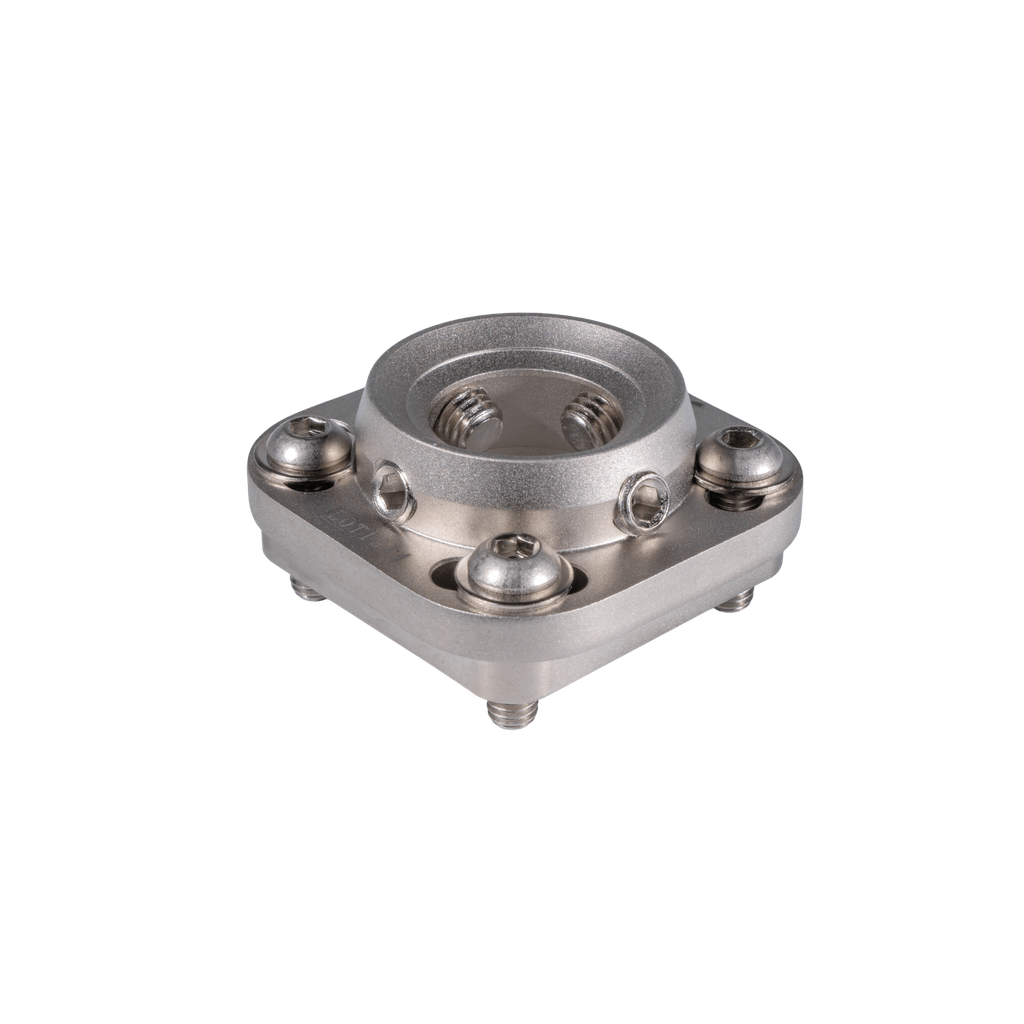

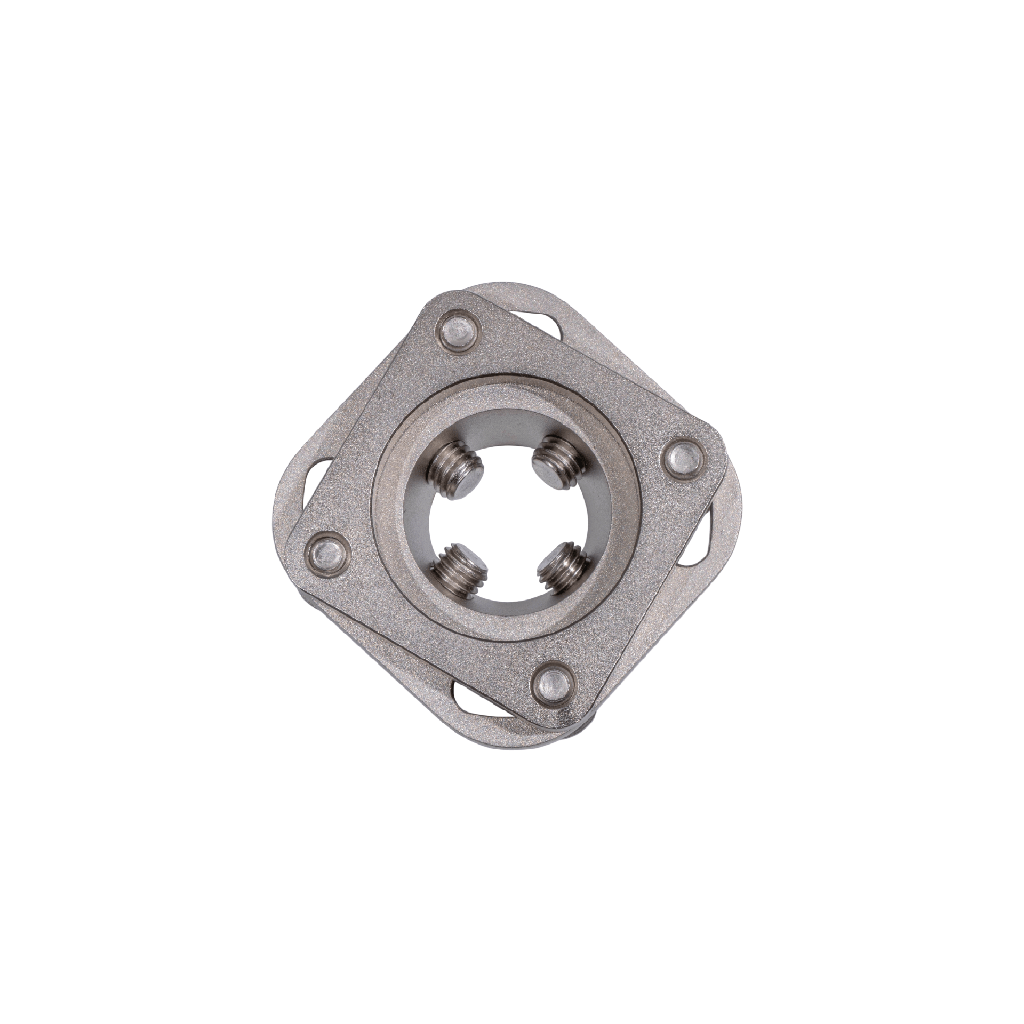

4 Hole Rotatable Pyramid Receiver (One Piece), AL

$ 69.62 $ 69.62
The rotatable 4-hole pyramid adapter attaches to any socket or knee
with a distal 4-hole pattern. Four screws and washers are provided
along with inner threaded mounting plate. Provides up to 24 degrees
rotation. Available in forged and machined Aluminum resulting in a
strong and lightweight product.

Warranty: 2 year
  • Material
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Aluminum

P/NMaterialHeightProduct WeightWeight Limit
1238AAluminum15 mm82 g100 kg / 220 lb

FastenerTorqueWrench
M8 Set Screw (Alignment Screw)7-10 Nm4 mm wrench
M6 Flat / Button Head (Mount)7-10 Nm4 mm wrench
