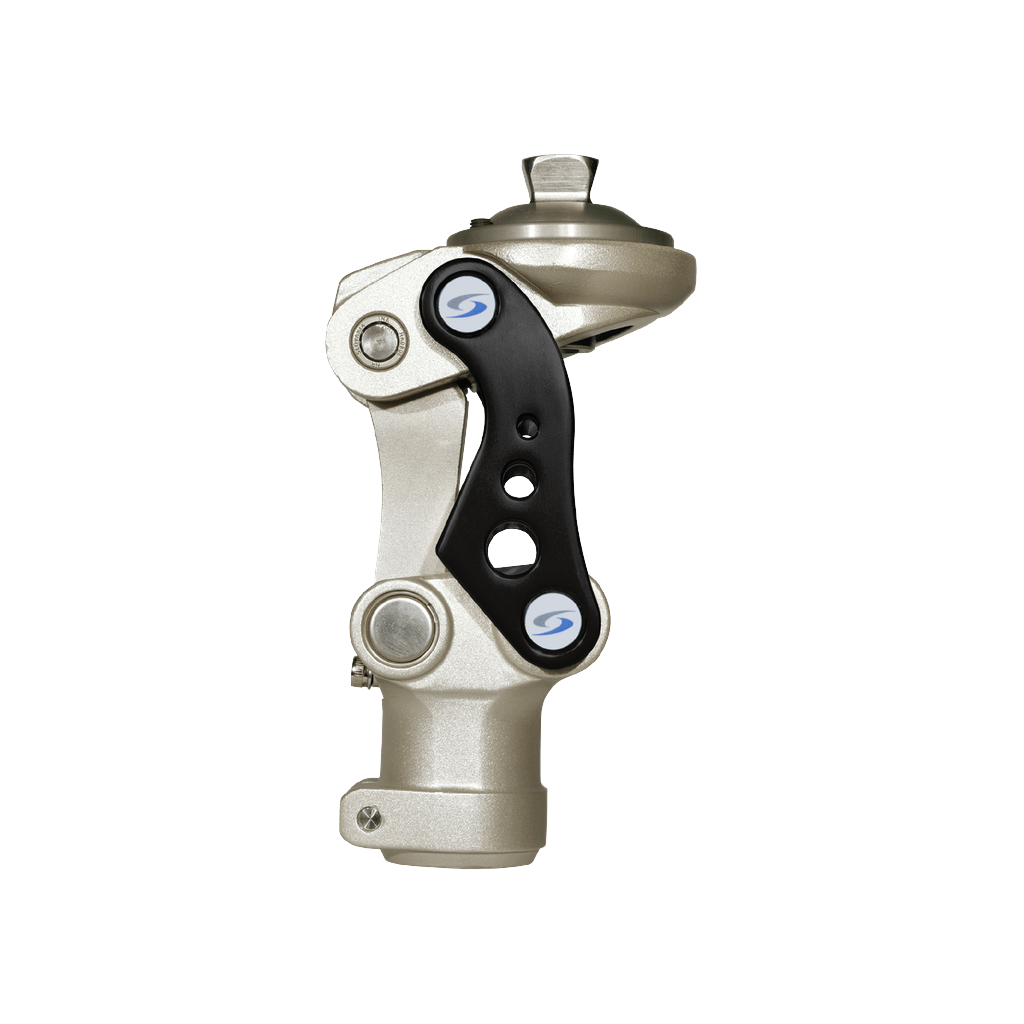

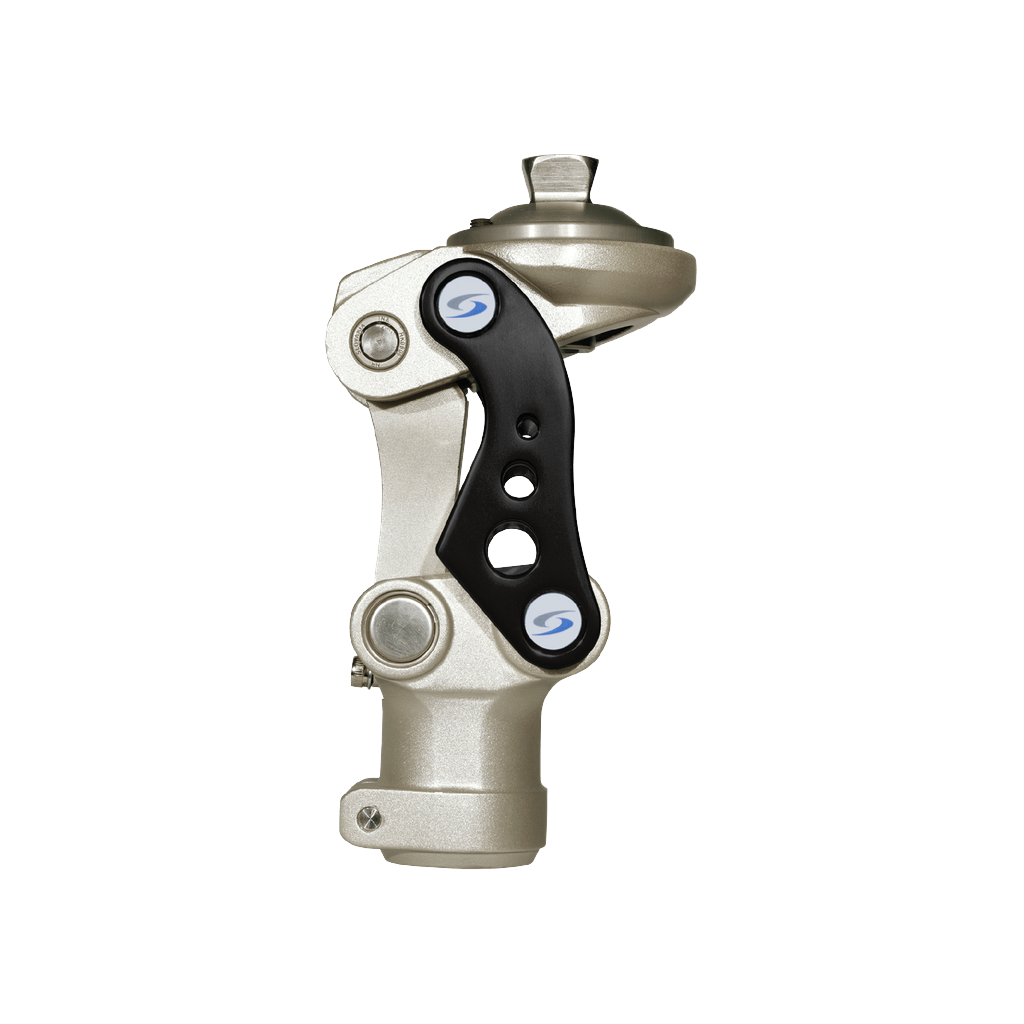

| P/N | 1321AP Pyramid Adapter | 1321AL Lotus Adapter |
|---|---|---|
| Weight Limit | 125 kg / 275 lb | 125 kg / 275 lb |
| Build Height | 108 mm | 114.3 mm |
| Knee Center to Mid Dome | 23 mm | 29.3 mm |
| Product Weight | 651 g | 672 g |
| Material | Aluminum | Aluminum |
| Warranty | 2 years | 2 years |
| P/N | Description |
|---|---|
1211T-B | 30 mm Pylon Titanium Receiver, Black |
1211T | 30 mm Pylon Titanium Receiver |
1211S | 30 mm Pylon Stainless Steel Receiver |
1211A | 30 mm Pylon Aluminum Receiver, Black |
1211A-OP | 30 mm Pylon Aluminum Assembly One Piece |
| PA13 | Pyramid Adapter |

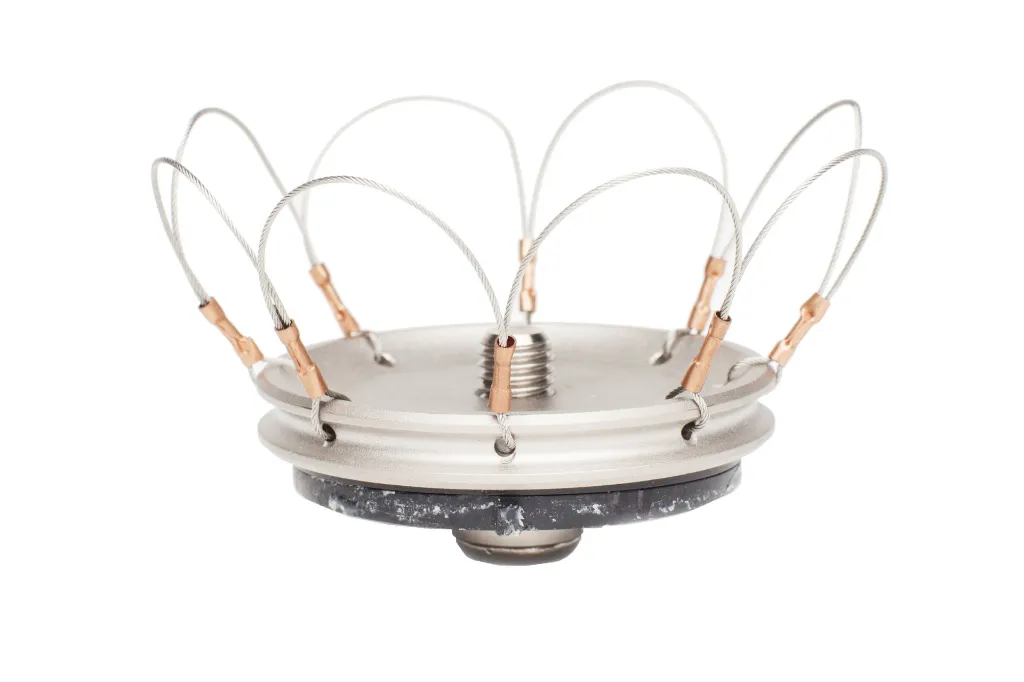

| LA13 | Lotus Adapter |
| Fastener | Torque | Wrench |
|---|---|---|
| M6 Cap Screw (Tube Clamp) | 10 Nm | 5 mm wrench |
| M10 Bolt (Pyramid Center) | 30 Nm | 8 mm wrench |
