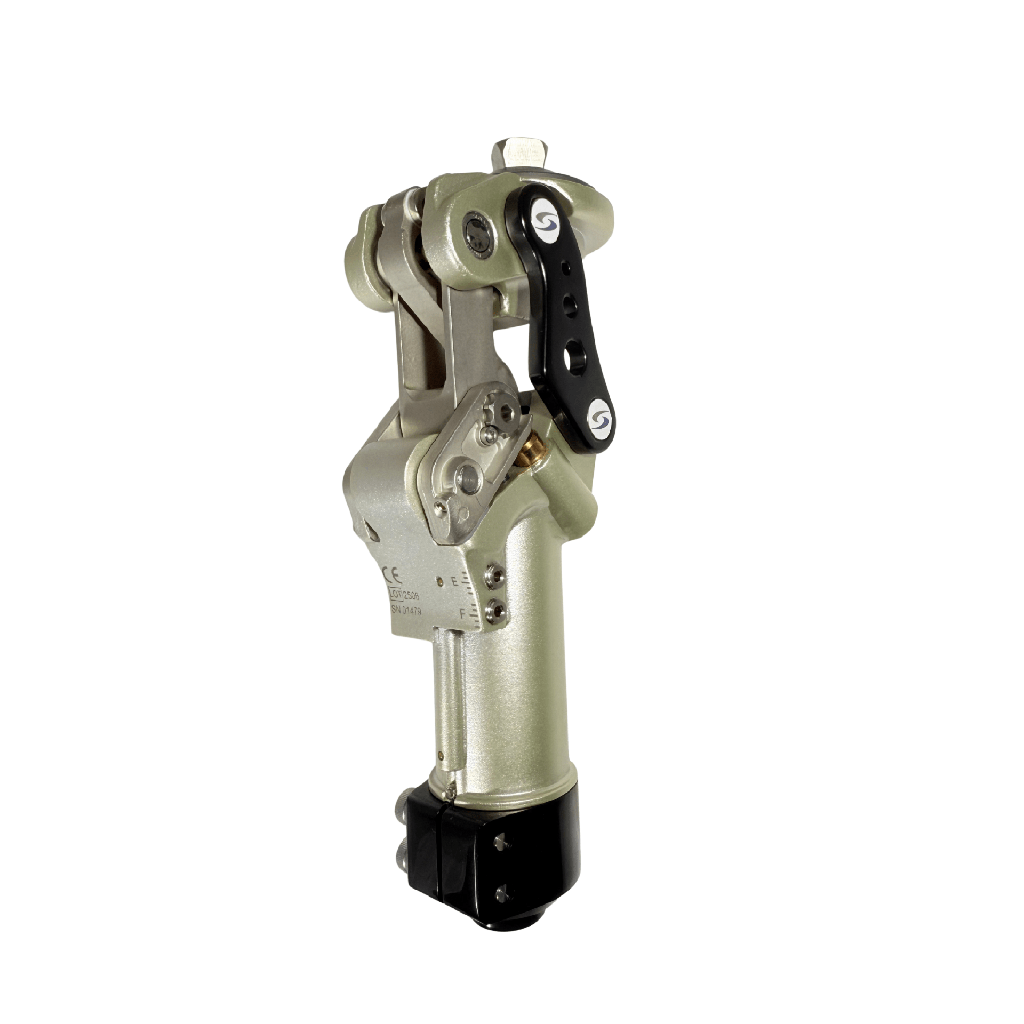

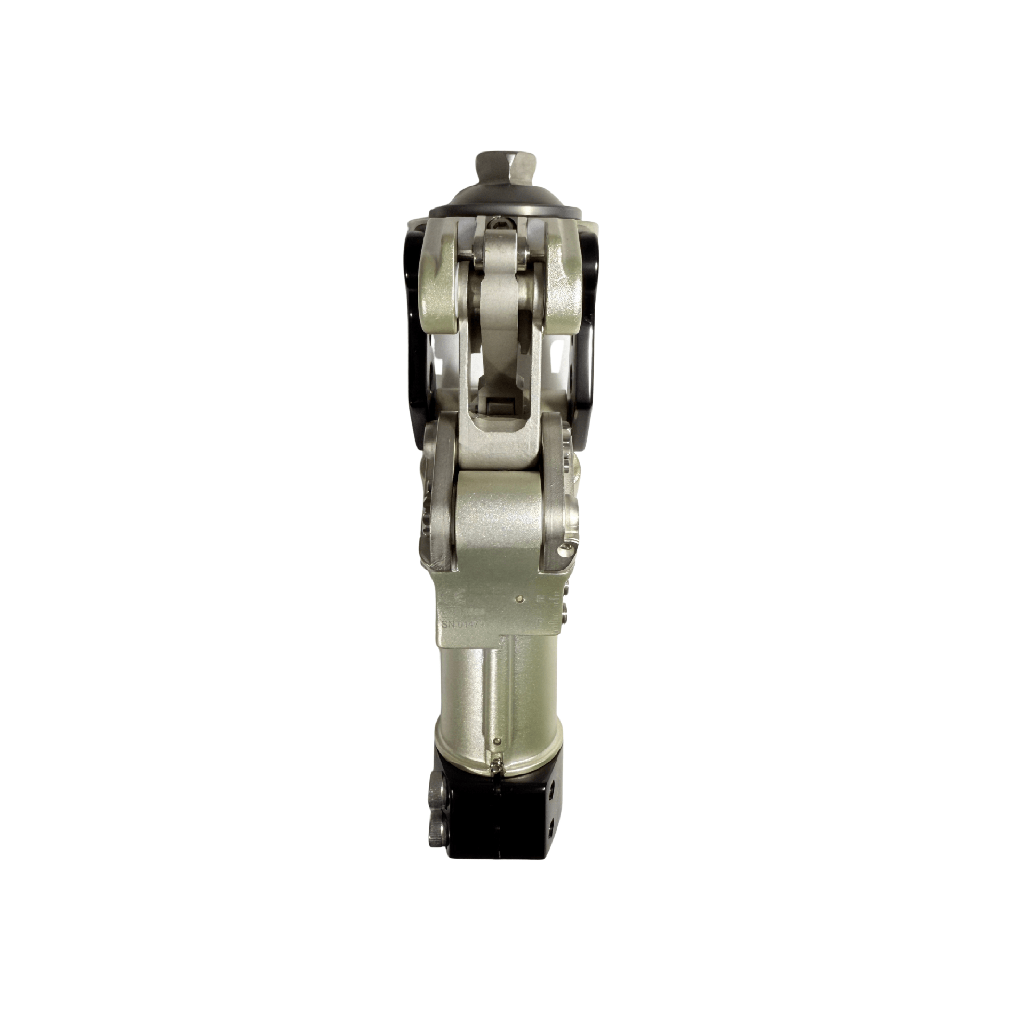

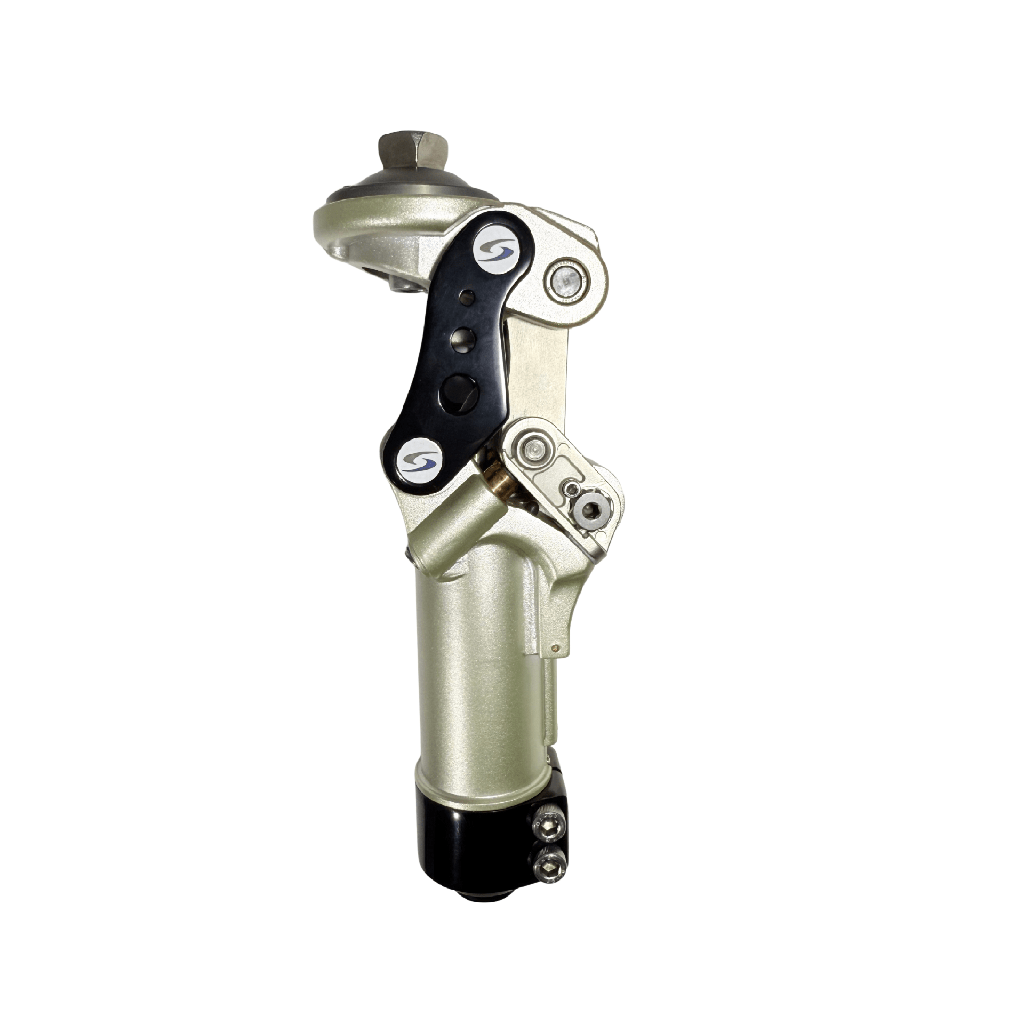

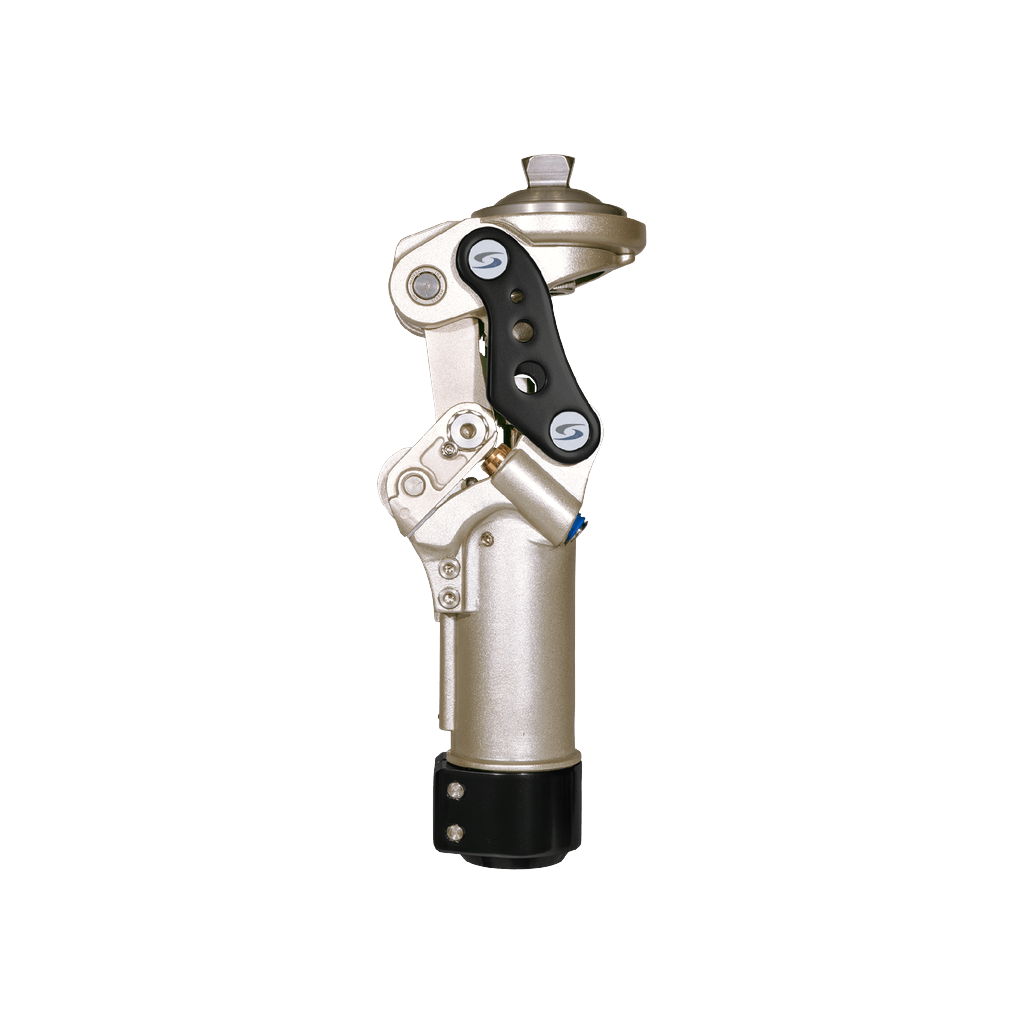

Polycentric Pneumatic 5 Bar Knee

1,364.45 1,364.45
  • Pneumatic cylinder with independent flexion - extension adjustment for swing phase
  • Optional Adapters: Pyramid (AK) and Lotus (KD)
  • All axes have built-in bearing which allow for ultra smooth walking movement
  • Extensive alignment adjusting abilities for a smooth and natural gait pattern
  • Polycentric knee with stance flexion control for maximum safety during stance
  • Best suited to be used for low to moderate K3 level
  • Practitioner adjustable from high to low stability stance flexion
  • Proximal attachment has 2mm of A/P, M/L slide and rotation adjustment
  • Up to 12 degrees of stance flexion
  • Adjustable extension assist
PDAC approved HCPCS code(s): L5840, L5845, L5850
  • Adapter
  • Material
Material: Aluminum
Activity Level: High
K-Level: K3
L-Codes: L5850, L5840, L5845

P/N1323AP Pyramid Adapter1323AL Lotus Adapter
Weight Limit125 kg / 275 lb125 kg / 275 lb
Build Height177.5 mm183.8 mm
Knee Center to Mid Dome24 mm30.3 mm
Knee Flexion135 Degrees135 Degrees
Product Weight976 g998 g
MaterialAluminumAluminum
Warranty2 years2 years

P/NDescription
PA13Pyramid Adapter for: 1323
LA13Lotus Adapter for: 1323

FastenerTorqueWrench
M6 Cap Screw (Tube Clamp)7-10 Nm5 mm Wrench
M10 Bolt (Pyramid Center)18 Nm8 mm Wrench
