OTNI 1423

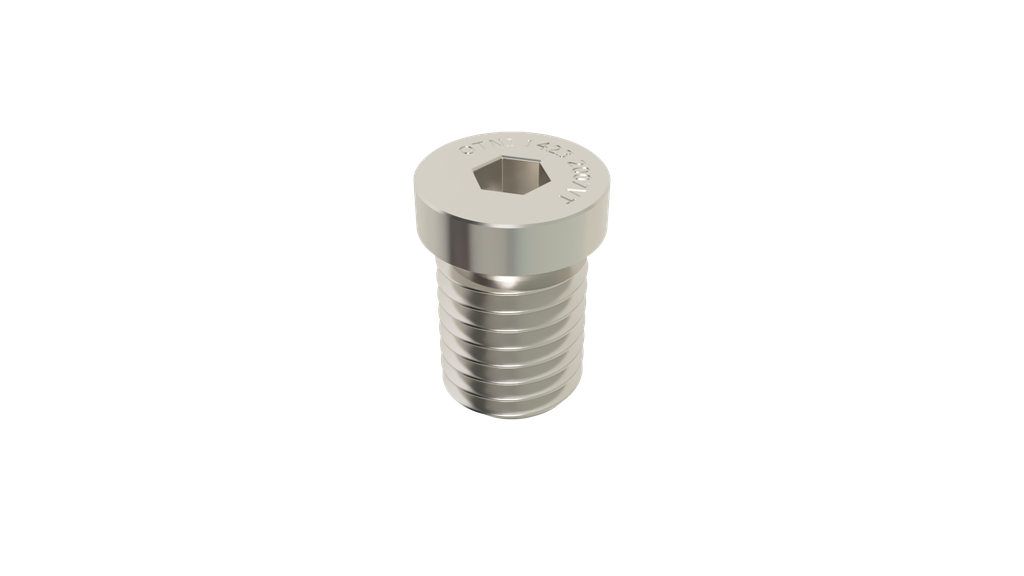

OTNI M14x2 Abutment Screw

Description: OTNI M14x2 Abutment Screw, most common size used for OTNI Dual Cone

Ref. no. OTNI 1423

Material: Titanium grd. 5

Engraving: OTNI 1423 CE YYYYYY

Warranty: 2 years

Open OTN box returns with a broken seal will incur a $45 restocking fee because the manufacturer must evaluate and recertify the item.
This fee does not apply to items eligible for warranty coverage.



These products are only available for purchase within the United States. For more information or to place an order, please call our office. Our team will be happy to assist you!

Add to cart
Contact Us: 714-524-0663 Distributor Contacts
This product is not available for delivery to your region. Please contact us if you believe this is in error.
Contact Us

P/NProduct Description
Thread Pitch
OTNI 1423OTNI M14x2 Abutment Screw
Course

Table 7.3A: screw connection specifications



Torque Thread lock (only if necessary)
OTNI 1423 M14 Abutment Screw (course thread) 17 Nm
Only small drop on the shoulder end of screw
OTNI 1422 M12 Abutment Screw (fine thread) 22 Nm
Only small drop on the shoulder end of screw
OTNI 1706 Luci Clamp Nut Set Screw 1 Nm apply Purple Loctite 221
M5 adjusting screws in the offset plate 5-10 Nm (see Table 7.2B for indication and instructions) No Loctite
M8 set screws of the pyramid receiver 15 Nm Apply Loctite
Internal Locking Screw
15 Nm
No thread locker
