1222A

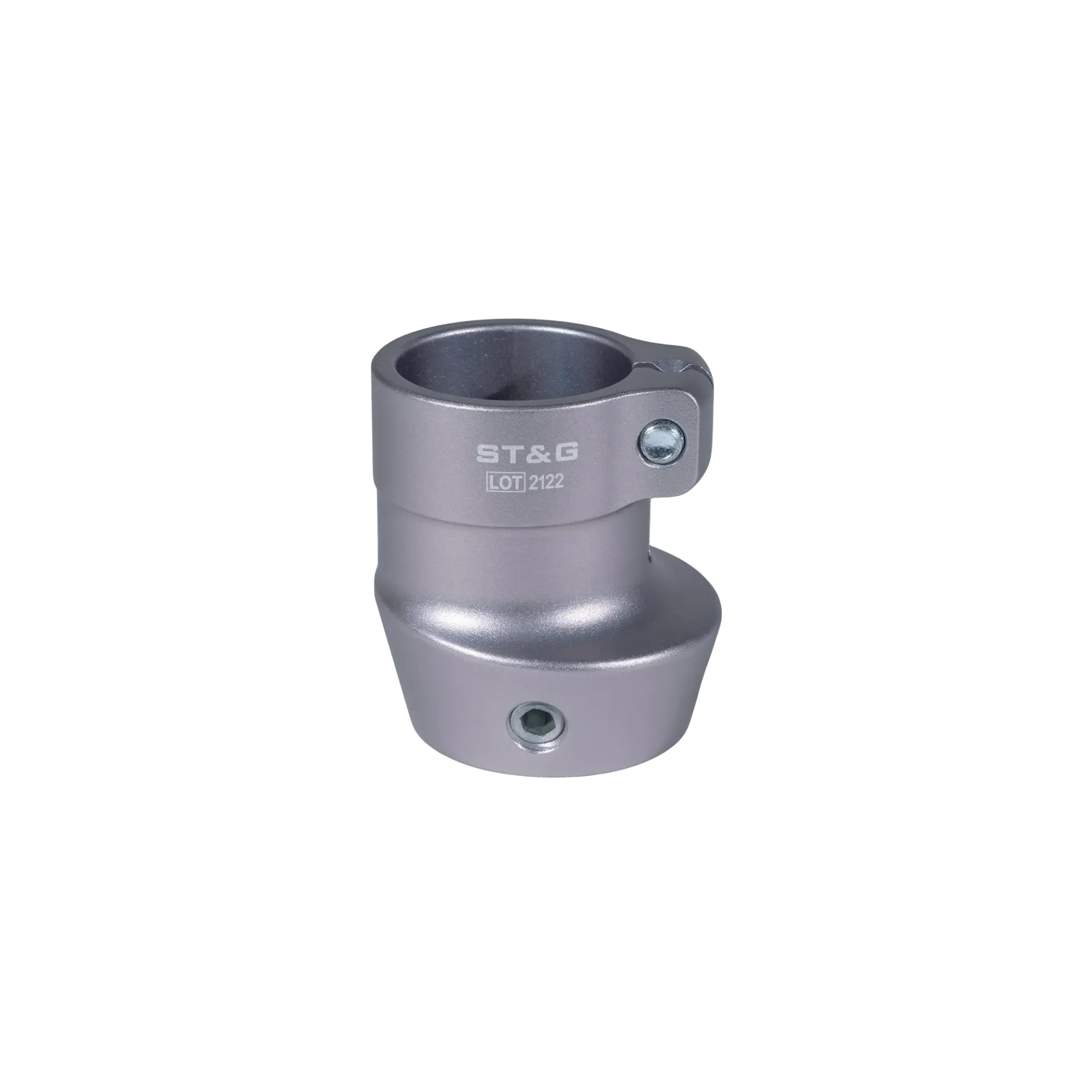

Offset Tube Clamp, 30mm, AL

Name: Offset Tube Clamp, 30mm, AL
SKU: 1222A
Price: 61.38 USD
Availability: InStock

The 30mm 1222 tube clamp offers 5mm of offset when

extra alignment is needed. It is also ideal when using a

pin suspension lock, where prosthetic and pin alignment

can be easily adjusted using the offset clamp. This versatile

clamp design also provides an offset position that can be

rotated 360 degrees.

Warranty: 2 years

International clients will receive silver metallic aluminum - 250 lb weight limit

USA clients will receive black aluminum - see specs for weight limit

Material: Aluminum

Activity Level: Moderate

K-Level: K2

P/N	Material	Product Weight	Build Height	Weight Limit
1222A	Aluminum	96.4 g	20 mm	114 kg / 250 lbs

P/N	Description
1211T-B	30 mm Pylon Titanium Receiver, Black
1211T	30 mm Pylon Titanium Receiver
1211S	30 mm Pylon Stainless Steel Receiver
1211A	30 mm Pylon Aluminum Receiver, Black
1211A-OP	30 mm Pylon Aluminum Assembly One Piece

Fastener	Torque	Wrench
1222A M8 Set Screw (Alignment Screw)	10 Nm	4 mm wrench
1222A M5 Cap Screw	5 Nm	4 mm wrench
