L1311A

Weight Activated Brake Knee with Manual Lock

$ 876.99 $ 876.99

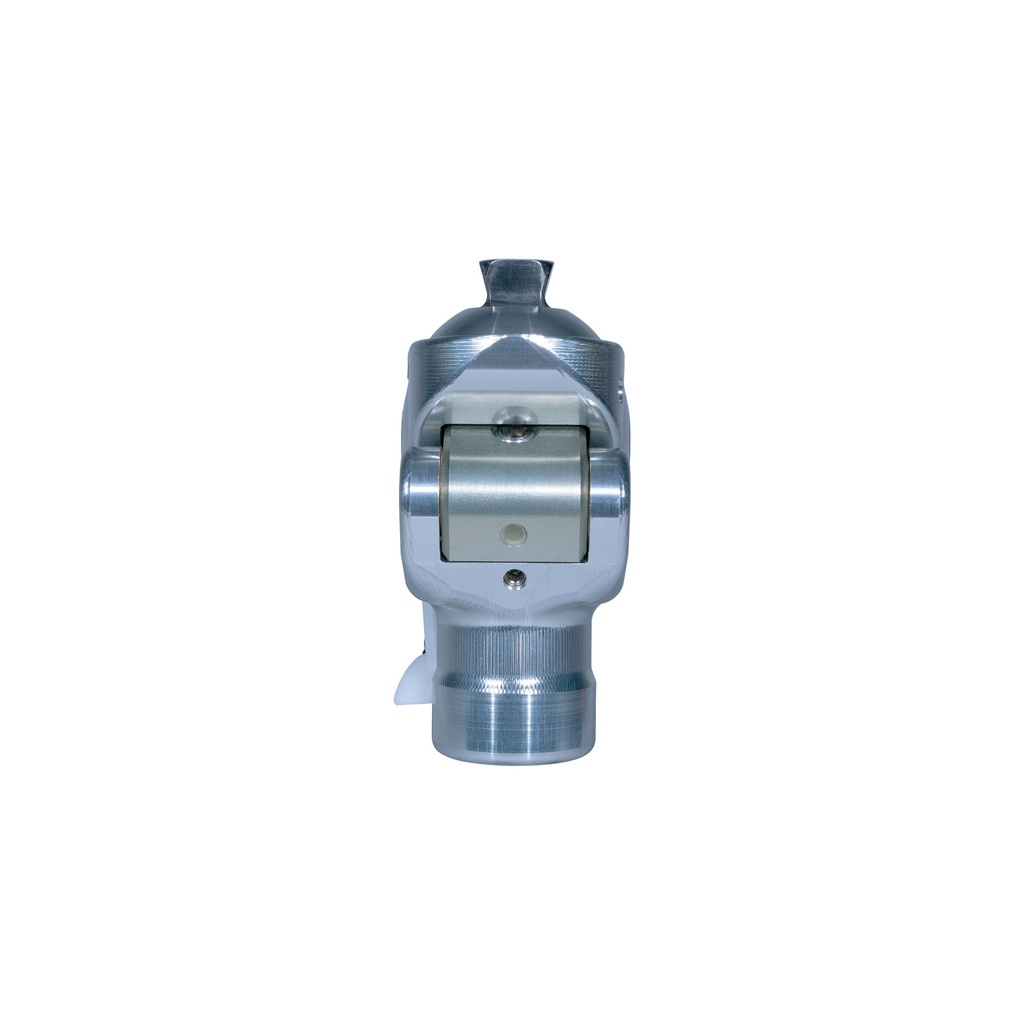

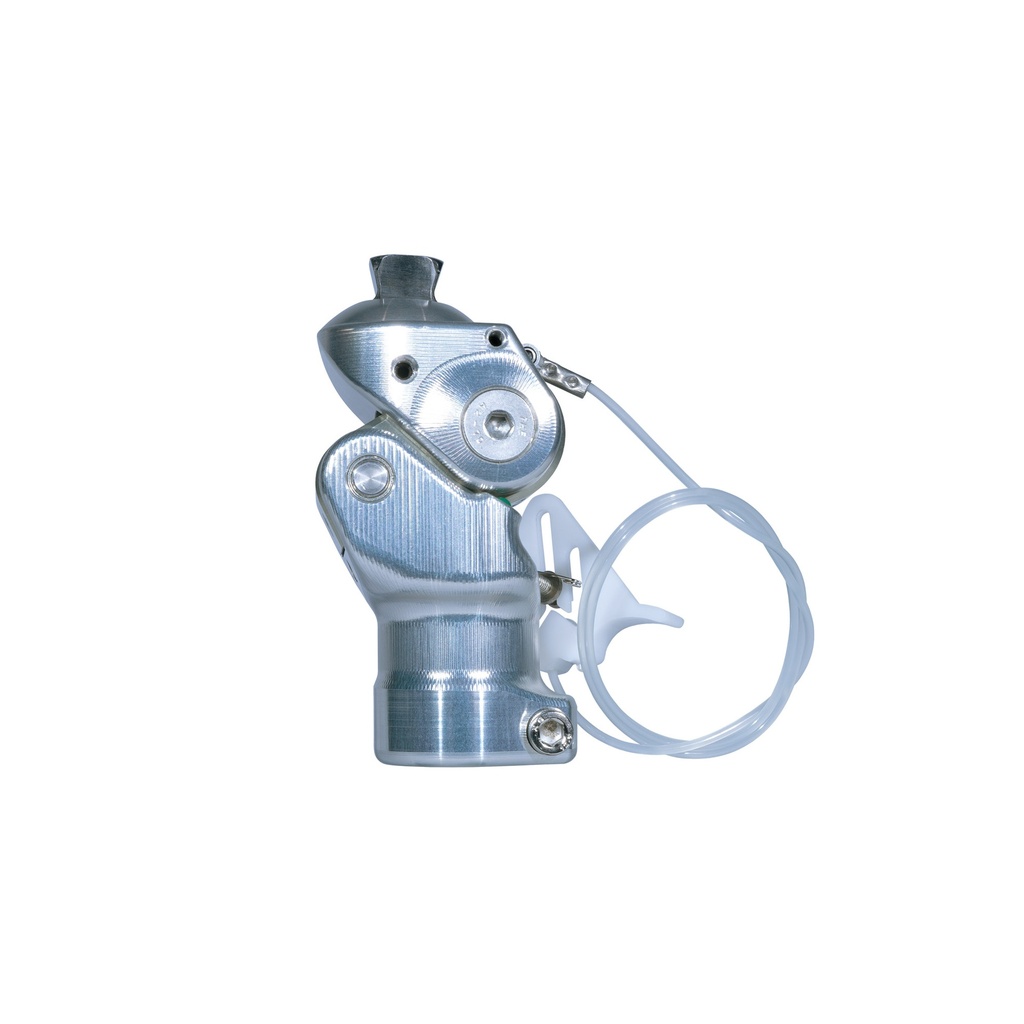

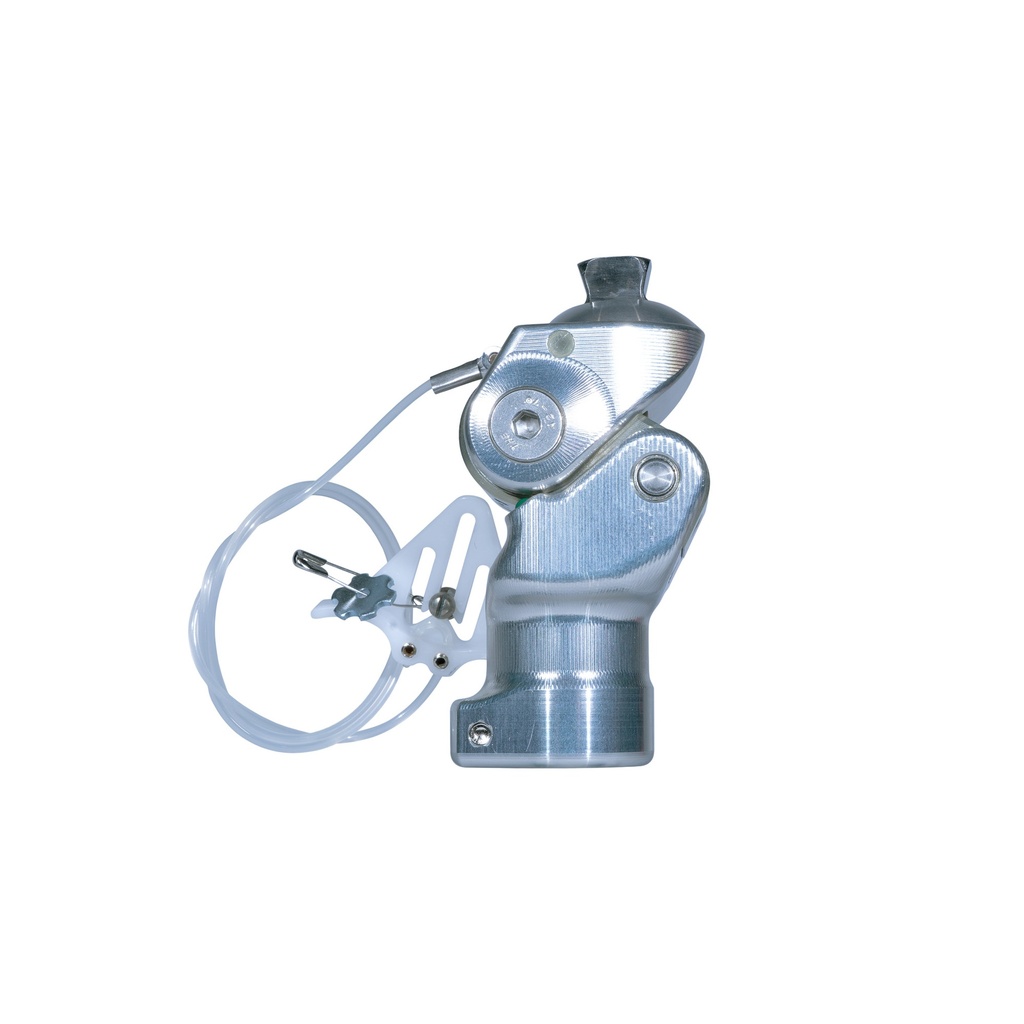

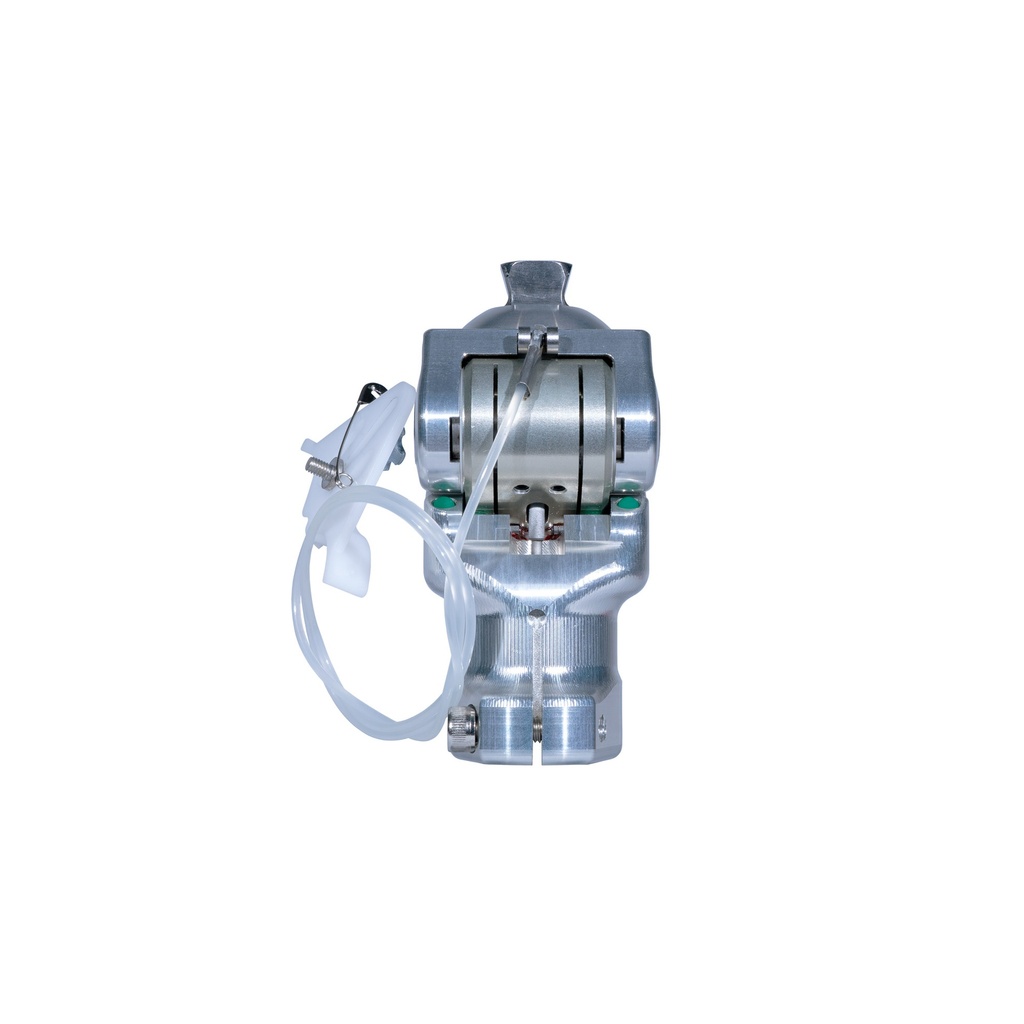

The L1311A knee joint is a light single axis knee joint that offers a weight activated brake function with manual lock feature: its 2-in-1 function means it can be used as part of the rehabilitation phase. As a locked knee joint, it is particularly suitable for initial standing and gait exercise. With increased mobility, the knee can be set to a non-locking weight activated brake function. The brake feature guarantees a controlled flexion and extension profile.

Indications

  • Ideal for the rehabilitation phase
  • Manual locking feature provides a high degree of safety when required
  • Ability to switch between a locked and weight activated brake knee joint
  • Adaptable to the patient’s progress Product Benefits
  • Single Axis knee
  • Locking function for a high degree of safety for initial standing and gait exercises.
  • Flexion and extension can be released depending on the patients progress
  • Individually selectable level of safety in definitive therapy
  • Clinician adjustable features: Rates of flexion and extension can be adapted to the user’s wishes

PDAC approved HCPCS code(s): L5812, L5850, L5925

Material: Aluminum
Activity Level: Low
K-Level: K1, K2
L-Codes: L5812, L5850, L5925

P/NKnee Description
Weight Limit125 kg / 275 lb
Build Height65 mm
Knee Center to Mid Dome26 mm
Knee Flexion145 Degrees
Product Weight495 g
MaterialAluminum
Warranty2 years

P/NDescription
1211T-B
30 mm Pylon Titanium Receiver, Black
1211T
30 mm Pylon Titanium Receiver
1211S
30 mm Pylon Stainless Steel Receiver
1211A
30 mm Pylon Aluminum Receiver, Black
1211A-OP
30 mm Pylon Aluminum Assembly One Piece
LY-14Lanyard for Manual Locking Knee

FastenerTorqueWrench
M6 Cap Screw8 Nm5 mm Wrench

Instructions for Use (IFU)

L1311A IFU REV H (07-09-26).pdf

PDAC Letter

L1311A-1.pdf

Product Information

L1311A.pdf
